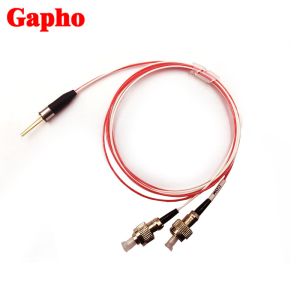

TAP PD (Spectral Detector)

Product Description

TAP PD (Spectral Detector) adopts a double-core pigtail structure, which is split through a beam splitter, a certain proportion of the light is coupled to the photodetector, and the rest of the light is reflected to another fiber.

Features

• Low additional loss, high reliability
• Arbitrary split ratio.

Applications

• DWDM link monitoring
• EDFA light output monitoring
• light switch
• Optical Communication Measurement Equipment

​

optical and electrical performance

storage and working conditions

Absolute Maximum Ratings (Tc=25℃, unless otherwise noted

Structure diagram: (can be customized according to customer requirements)

other product

certification

Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company promotes production efficiency and reduces product costs through continuous technological innovation and new process applications.
The company's high-quality products, reasonable prices, and accurate delivery date to cooperate with customers.

 Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise specializing in design, development, production and processing:
The company has processing equipment: plastic injection molding machine, CNC machining center, CNC lathe, sheet metal bending, laser, riveting, polishing machine, ultrasonic, milling machine, wire cutting, punching machine, surface grinder, quality control equipment, projector, micrometer, ring gauge Product control degree, etc. We have rich experience in supporting production, high quality control, high efficiency, and high-quality after-sales service. The company has an enterprise team with professional skills and dedication and 8 years of manufacturing experience. The company has established long-term and stable cooperative relations with many scientific research units, research universities, and manufacturers in various fields.
